VOLVO PENTA ATRV 200 DIESEL POWER GENERATOR

Volvo Penta ATRV 200 diesel generator set with prime power of 161 kW (201 kVA) at 400 V, 3-phase, 50 Hz. Powered by a turbocharged 6-cylinder Volvo Penta engine with electronic governing and a Stamford/Leroy Somer alternator.

Data Sheet (PDF) Volvo Penta
Volvo Penta ATRV 200 Diesel Power Generator

Equipment gallery

Volvo Penta ATRV 200 Diesel Power Generator

Description

Manufactured by Volvo Penta, a globally recognized brand in power solutions. The ATRV 200 is a robust diesel generator set designed for reliable prime power in demanding applications.

This generator is suitable for a wide range of uses including construction sites, industrial facilities, commercial buildings, and emergency backup. Its heavy-duty fabricated steel base frame and anti-vibration mounting ensure stable operation and reduced noise transmission.

The unit features a turbocharged engine with electronic injection and governing for efficient fuel consumption and consistent performance. The alternator is directly coupled via an SAE flange and equipped with a self-excited shunt excitation system and automatic voltage regulator for stable output. The control panel includes a Deep Sea controller and ABB circuit breaker for safe and convenient operation.

Technical specifications

Manufacturer

Volvo Penta

Country of Origin

Sweden

Alternator Model

UCI 274 / TAL 044 M

Control Panel Model

DSE 6110

Oil Sump Capacity

31 L

Oil System Capacity

34 L

Cycle

4 Stroke

Engine Make

Volvo Penta

Engine Model

TAD 733 GE

Number of Cylinders

6

Cylinder Arrangement

In line

Displacement

7.15 L

Alternator Make

Stamford / Leroy Somer

Voltage Regulator

SX460 / R150

Output Prime Power

160 kW (1500 rpm) / 196 kW (1800 rpm)

Gross Engine Power Prime

176 kW (178.222269 kW) at 50 Hz/1500 rpm; 192 kW (194.627667 kW) at 60 Hz/1800 rpm

Fuel Consumption at 50% Load

22.60 L/h at 50 Hz; 25.37 L/h at 60 Hz

Oil Consumption

0.08 L/h at 50 Hz; 0.09 L/h at 60 Hz

Fuel Consumption at 100% Load

45.00 L/h at 50 Hz; 50.74 L/h at 60 Hz

Fuel Tank Capacity

Approx. 8 hours running at full load

Alternator Insulation System

Class

Automatic Voltage Regulator (AVR) Voltage Regulation

±1%

Motor Starting Overload Capacity

300% of full load impedance at zero power factor for 10 seconds (with PMG option)

Number of Cylinders

6

Gross Engine Power KW m Prime (HP)

176 (239) at 50 Hz / 192 (261) at 60 Hz

Fuel System

Integral fuel tank with a capacity of approx. 8 hours running at Full Load

Automatic Voltage Regulator (AVR)

Maintains Voltage Regulation at ±1%

Motor Starting

Overload capacity equivalent to 300% of Full Load impedance at zero Power Factor for 10 seconds (when PMG option is fitted)

Protection

IP 23

Combustion System

Electronic Injection

Control Panel Make

Deep Sea

Governing Type

Electronic

Bore

108 mm

Stroke

130 mm

Aspiration

Turbocharged

Compression Ratio

18:1

Number of Bearings

Single

Insulation

Class

Excitation

Self-excited / Shunt

Temperature Rise

125 °C

Regulation

±1 %

Number of Phases

3

Number of Poles

4

Heat Rejection at Exhaust (Standby)

165 kW at 50 Hz; 202 kW at 60 Hz

Exhaust Temperature (Standby)

530 °C

Radiator Cooling Air Flow

3.9 m³/s at 50 Hz; 4.9 m³/s at 60 Hz

Combustion Air Flow (Standby)

12.4 m³/min at 50 Hz; 15.8 m³/min at 60 Hz

Exhaust Gas Flow (Standby)

37.2 m³/min at 50 Hz; 44.4 m³/min at 60 Hz

Circuit Breaker Type

ABB 3 pole MCCB (4 pole optional)

Output Ratings at 400 V, 3 ph. 50 Hz, 1500 rpm (Prime)

201 KVA / 161 KWe

Base Frame Type

Heavy-duty fabricated steel

Anti-Vibration Mounting

Anti-vibration pads between engine/alternator feet and base frame

Output Ratings at 400 V, 3 ph. 50 Hz, 1500 rpm (Standby)

224 KVA / 179 KWe

Output Ratings at 440 V, 3 ph. 60 Hz, 1800 rpm (Prime)

221 KVA / 177 KWe

Output Ratings at 440 V, 3 ph. 60 Hz, 1800 rpm (Standby)

246 KVA / 197 KWe

No. of Bearings

Single

No of Phases

3

No of Poles

4

Output Prime KW

160 (1500 rpm) / 196 (1800 rpm)

Mounting Arrangement

Heavy-duty fabricated steel Base frame

Coupling

Directly coupled by means of an SAE flange

Anti-Vibration Mounting Pads

Affixed between the Engine / Alternator feet and the Base frame

Ratings

0.00 ( 0 )

Comments 0

No comments yet.

Pricing information

Monthly Rental Rate

SAR 6,500.00 per month
Availability: In stock (1)
Delivery time: 3–9 days
Contact Us Sales WhatsApp

Related equipment

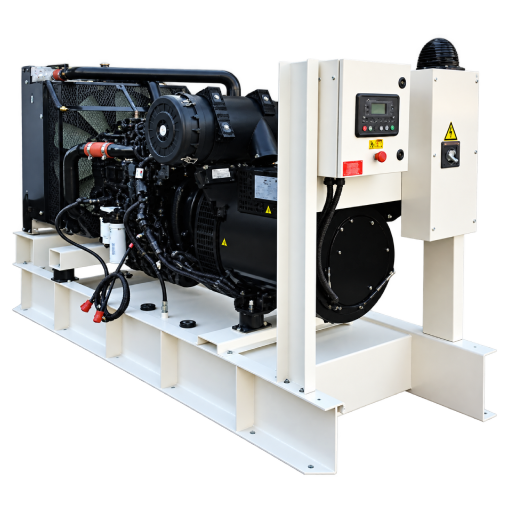

ATRP500 Diesel Generating Set
