DINGLI JCPT1614AC ELECTRIC SCISSOR LIFT – 15.7M WORKING HEIGHT

The Dingli JCPT1614AC is a reliable electric scissor lift offering a 15.7 m working height and 250 kg platform capacity. It combines smooth, zero-emission operation with precise proportional control, ideal for indoor and outdoor applications in construction, maintenance, and facility management. Available for rental from Rakaz Al Joudah General Contracting (RJGC).

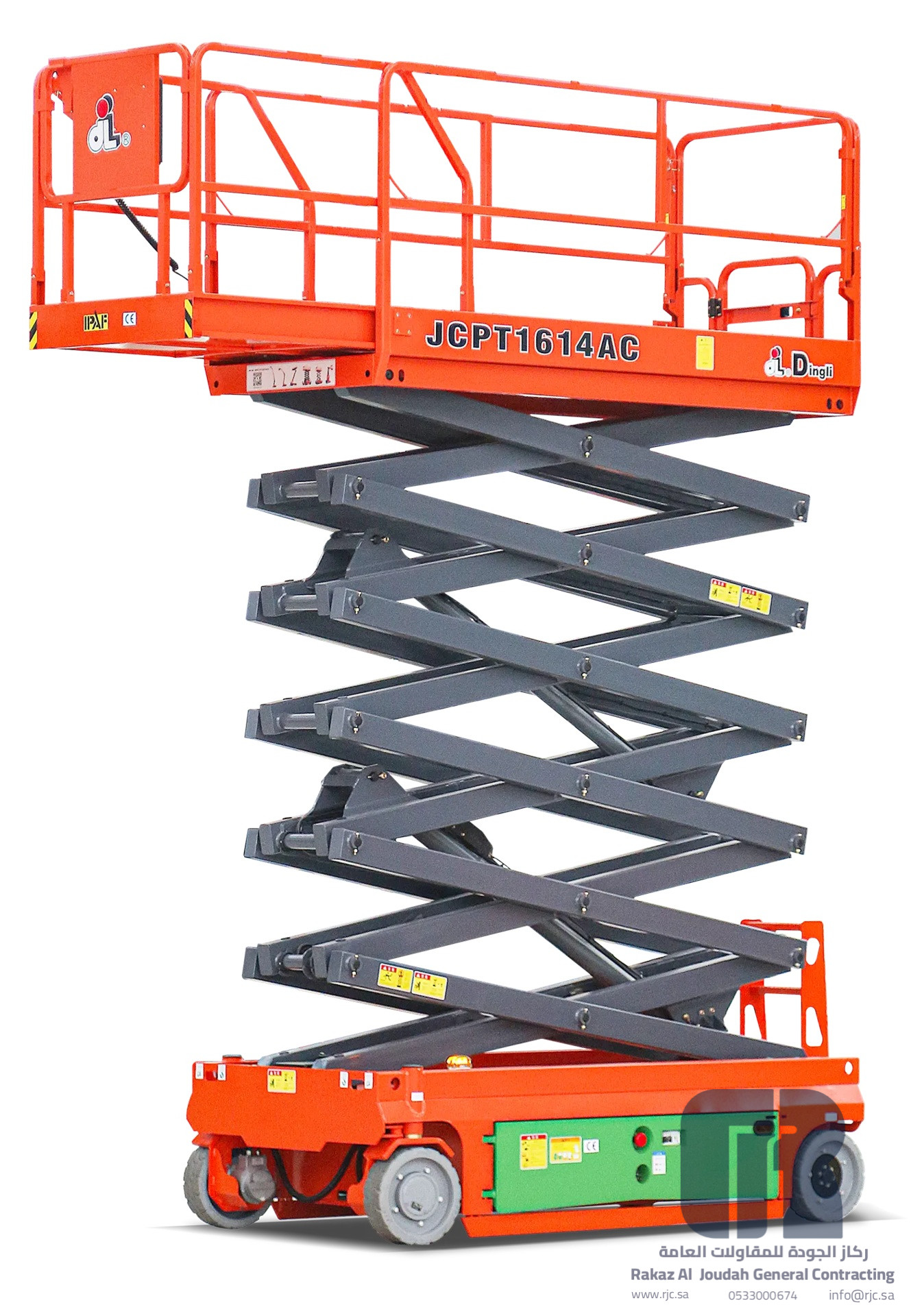

Dingli JCPT1614AC Electric Scissor Lift – 15.7m Working Height

Description

About the Dingli JCPT1614AC Electric Scissor Lift

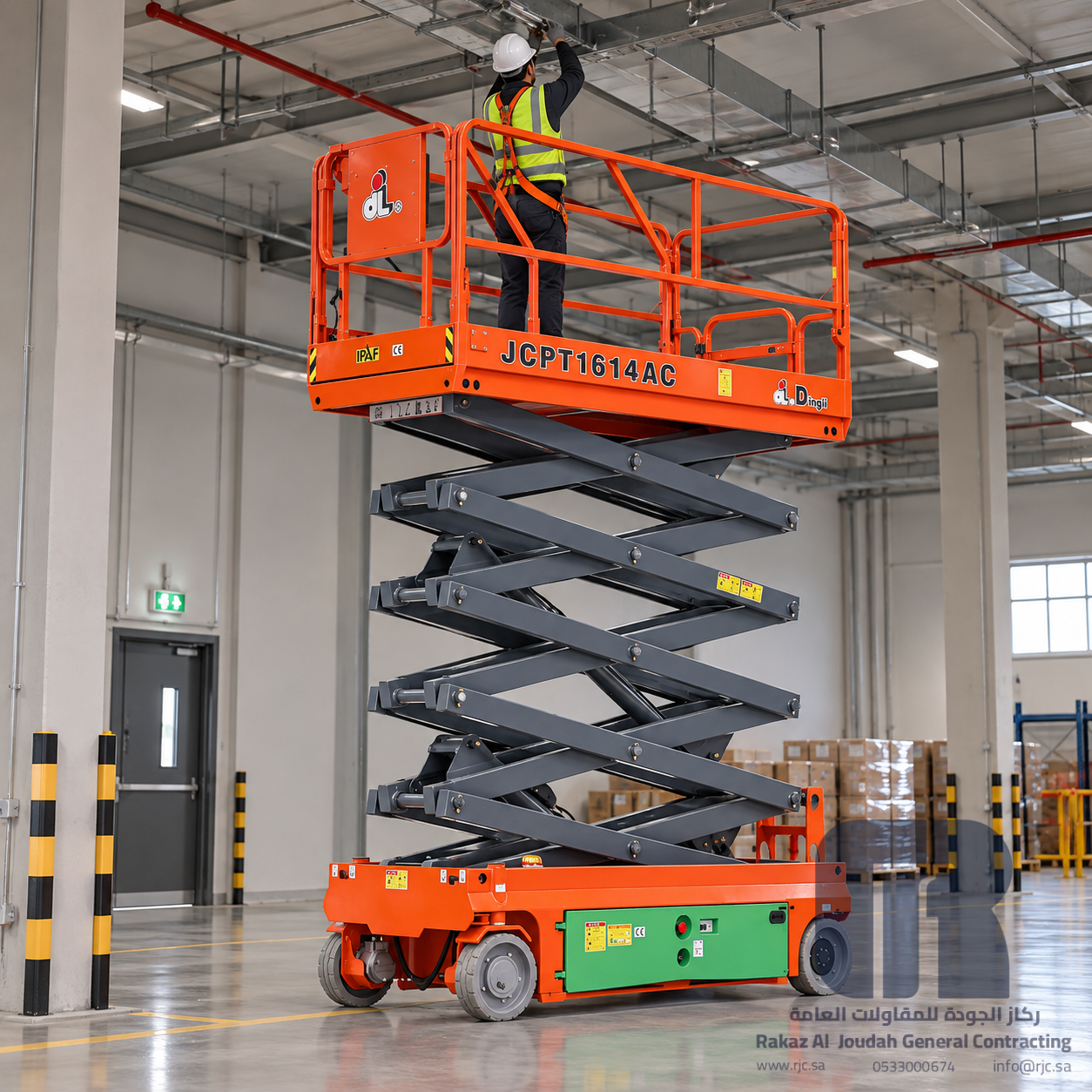

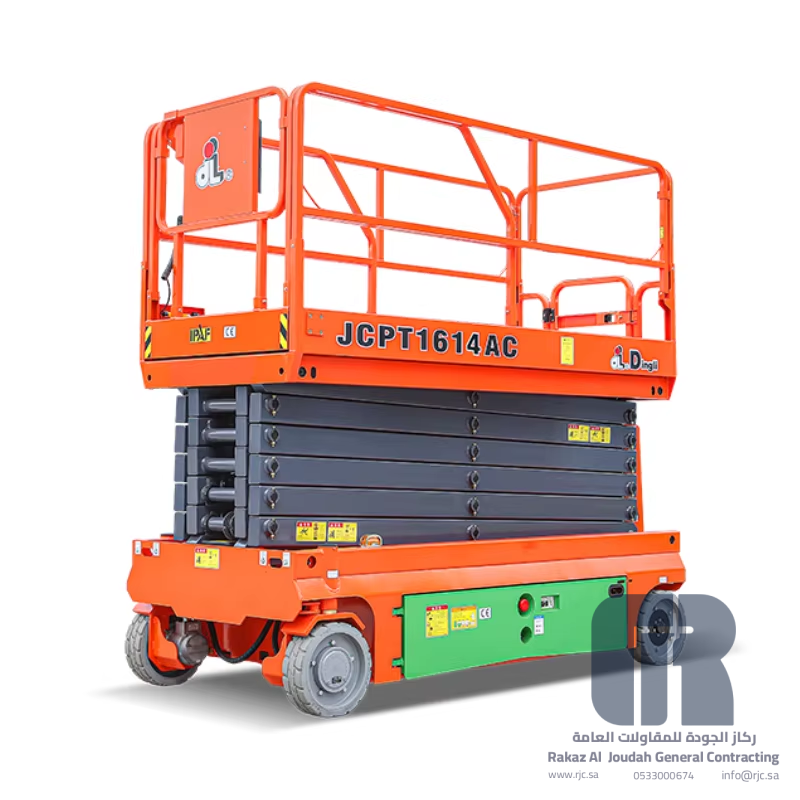

The Dingli JCPT1614AC is a self-propelled electric scissor lift engineered for safe, efficient, and eco-friendly access to elevated work areas. With a 15.7 m working height, 250 kg platform capacity, and smooth 4×2 drive system, it delivers consistent performance for demanding indoor or outdoor tasks.

Performance and Control

Featuring proportional joystick controls and a quiet electric drive, the JCPT1614AC allows precise movement and lifting. The non-marking tyres protect delicate floors, while the one-way extension deck provides extra reach when needed. Automatic braking and tilt alarms ensure operator safety at all times.

Safety and Efficiency

This model includes a range of safety features such as an emergency descent system, overload sensing, tubing explosion-proof system, and onboard fault diagnostics. Foldable guardrails and forklift access points make it easy to transport and maintain.

Applications

Ideal for maintenance, electrical installations, industrial works, and construction finishing tasks, the JCPT1614AC offers quiet operation and zero emissions — perfect for warehouses, shopping malls, and industrial facilities.

Available for Rental

Rent this machine from Rakaz Al Joudah General Contracting (RJGC) for short or long-term use. We provide reliable delivery, maintenance support, and operator guidance to keep your project efficient and safe.

Technical Specifications

Manufacturer

Dingli

Country of Origin

China

Model

JCPT1614AC

Max Working Height (Indoor/Outdoor)

15.7 m / 12.0 m

Platform Height (Indoor/Outdoor)

13.7 m / 10.0 m

Overall Length

2.84 m

Overall Width

1.39 m

Overall Height (Rails Up/Down)

2.62 m / 2.09 m

Platform Size (L×W)

2.64 m × 1.12 m

Platform Extension Size

0.90 m

Ground Clearance (Stowed/Raised)

0.10 m / 0.019 m

Wheelbase

2.22 m

Turning Radius (Inside/Outside)

0 m / 2.70 m

Tyres

Φ381 × 127 mm

Platform Capacity

250 kg

Platform Capacity (Extension)

113 kg

Max Occupants (Indoor/Outdoor)

2 / 1 persons

Gradeability

25 %

Travel Speed (Stowed)

5.0 km/h

Travel Speed (Raised)

0.8 km/h

Max Working Slope

X-1.5° / Y-3°

Up/Down Speed

72 s / 67 s

Machine Weight

3470 kg

Hydraulic Tank

20 L

Lead-acid Battery

24V / 240Ah

Lithium Battery

24V / 220Ah

Charger

24V / 30A

Driving Motor

15VAC / 0.87 kW

Lifting Motor

15VAC / 3.5 kW

Standard Features

Proportional joystick controls; self-locking gates; one-way platform extension deck; drivable at full height; non-marking tyres; two-wheel drive; two-wheel steering; automatic braking system; emergency descent; tubing explosion-proof; onboard fault diagno

Ratings

0.00 ( 0 )

Comments 0

No comments yet.

Pricing Information

Rental Rate

SAR 6,000.00 per month
Availability: In Stock (6)
Delivery time: 3–9 days
