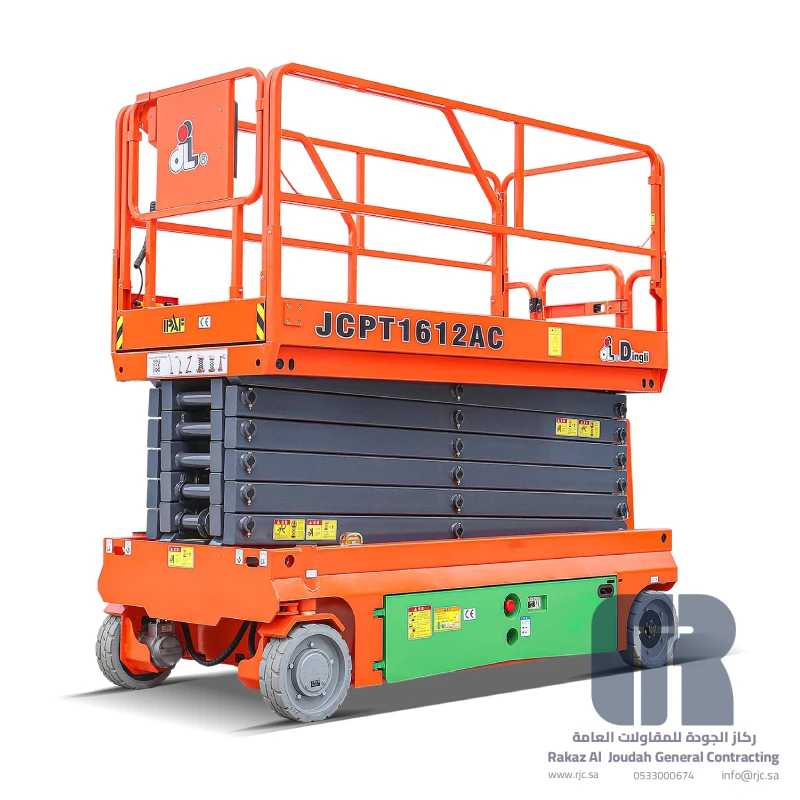

RENTAL DINGLI JCPT1612AC SELF-PROPELLED ELECTRIC SCISSOR LIFT

The Dingli JCPT1612AC is a self-propelled electric scissor lift offering a maximum working height of 15.7 meters and a platform capacity of 250 kg. Designed for indoor use, it delivers smooth, quiet operation with non-marking tires, proportional control, and maintenance-free AC drive motors—ideal for warehouse, facility, and maintenance applications.

Rental Dingli JCPT1612AC Self-Propelled Electric Scissor Lift

Description

Dingli JCPT1612AC – Self-Propelled Electric Scissor Lift

The Dingli JCPT1612AC is a reliable, easy-to-use electric scissor lift designed for safe and efficient work at height in indoor environments. Its compact footprint and smooth electric drive make it ideal for facilities maintenance, warehouses, retail fit-outs, and installation work.

Why choose this lift

  • Productive & precise: Proportional controls provide smooth, accurate positioning.
  • Operator comfort: Quiet, low-emission electric operation with non-marking tyres for finished floors.
  • Safety built-in: Automatic pothole protection, load-sensing, tilt and motion alarms, and emergency stop.
  • Drive at height: Move between tasks without lowering the platform to save time.
  • Service friendly: Onboard diagnostics, foldable guard rails, and convenient transport points.
  • Power options: Available with lead-acid or lithium battery configurations to suit your duty cycle.

Typical applications

Ideal for racking and stock work, lighting and MEP maintenance, signage, interior finishing, and general facility tasks.

Available for short- or long-term rental. Contact us to match the configuration to your site and task requirements.

Technical Specifications

Manufacturer Name

Zhejiang Dingli Machinery Co. Ltd.

Model Number

JCPT1612AC

Country of Origin

China

Equipment Type

Self-propelled electric scissor lift

Intended Use

Indoor use only (max occupants 2 indoor / 0 outdoor)

Max. working height

15.70 m

Max. platform height

13.70 m

Overall length (A)

2.84 m

Overall width (D)

1.25 m

Overall height (rails up) (E)

2.62 m

Overall height (rails down) (F)

2.09 m

Platform size L×W (G)

2.64 × 1.12 m

Platform extension (H)

0.90 m

Ground clearance (stowed/raised)

0.10 m / 0.019 m

Wheelbase

2.22 m

Turning radius (inside/outside)

0 m / 2.65 m

Tyres

φ381 × 127 mm non-marking

Platform capacity (S.W.L.)

250 kg

Capacity on extension

113 kg

Max occupants (indoor/outdoor)

2 / 0

Gradeability

25%

Travel speed (stowed)

5.0 km/h

Travel speed (raised)

0.8 km/h

Max working slope (X / Y)

X-1.5° / Y-3°

Lift / lower time

70 s / 67 s

Overall weight

3,360 kg

Hydraulic tank capacity

20 L

Batteries (options)

Lead-acid 24 V / 240 Ah or Lithium 24 V / 220 Ah

Onboard charger

24 V / 30 A

Drive motors

2 × 15 VAC / 0.87 kW

Lift motor

15 VAC / 3.50 kW

Standard features

Proportional joystick; self-locking gates; 0.9 m extension; drive at full height; non-marking tyres; 2WD & 2WS; automatic brakes; emergency descent; hose burst protection; diagnostics; tilt & motion alarms; horn; ho

Compliance / Certification

CE EN 280

Ratings

5.00 ( 1 )

Comments 0

No comments yet.

Pricing Information

Rental Rate

SAR 5,500.00 per month
Availability: In Stock (3)
Delivery time: 3–9 days
