RENT LGMG S1413EⅡ – 14M ELECTRIC SCISSOR LIFT

The LGMG S1413EⅡ is a compact electric scissor lift offering a 14 m working height and a 320 kg platform capacity. It delivers quiet, zero-emission operation with smooth proportional controls for precision and safety. Ideal for indoor and outdoor maintenance, installation, and facility management tasks where efficiency and reliability matter.

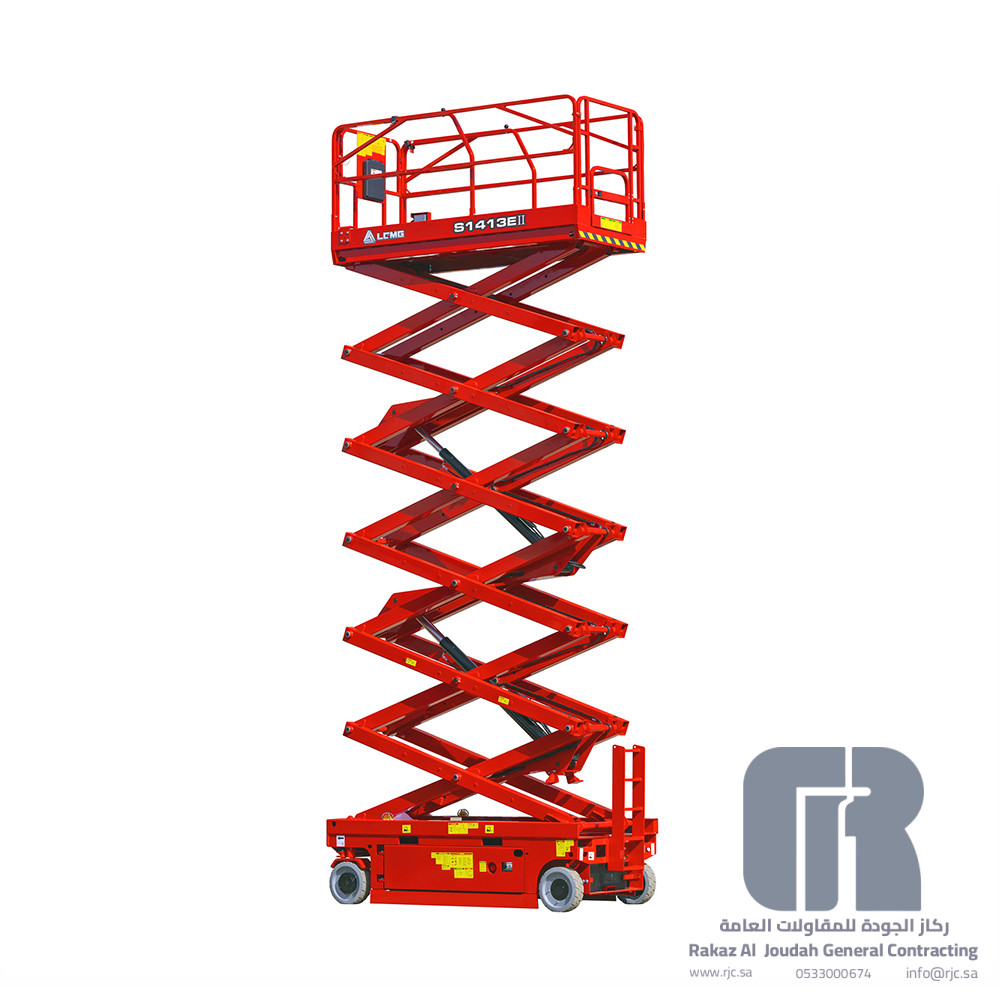

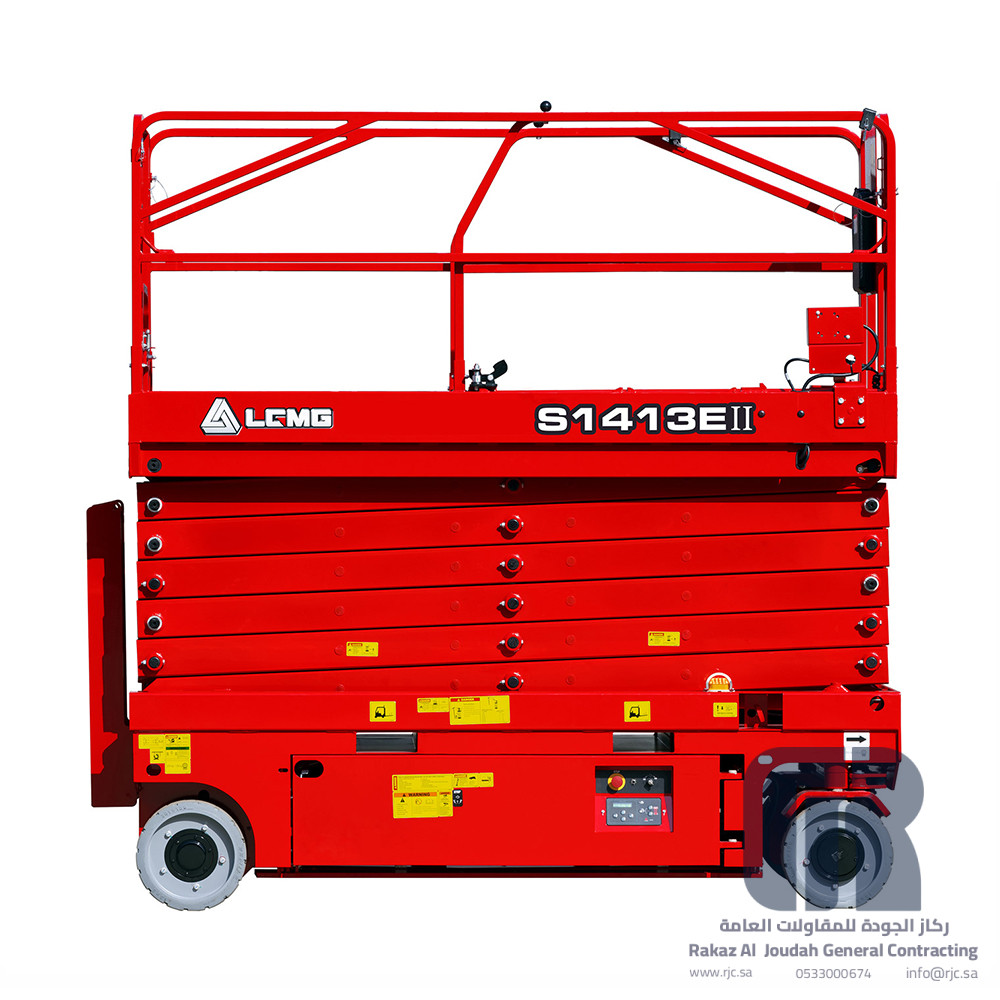

Rent LGMG S1413EⅡ – 14m Electric Scissor Lift

Description

About the LGMG S1413EⅡ Electric Scissor Lift

The LGMG S1413EⅡ (S4650EⅡ) is a compact, zero-emission electric scissor lift designed for productive, low-noise work at height. Its slim profile and non-marking tires make it ideal for tight indoor spaces, while the rugged chassis and reliable drive system handle light outdoor tasks with ease. Smooth proportional controls deliver precise positioning, and the extendable platform gives crews extra reach without repositioning the machine.

Performance & Efficiency

  • Quiet, battery-electric operation suitable for occupied buildings and low-emission sites.
  • Generous platform area to work with tools and materials comfortably.
  • Fast, confident lift and drive response for efficient task cycles.
  • Minimal maintenance design with swing-out component trays and on-board diagnostics.

Safety & Control

  • Automatic braking and pothole protection to enhance stability on the move.
  • Tilt and overload protection with clear alarms to keep operators informed.
  • Emergency stop and emergency descent systems for added peace of mind.
  • Fold-down guardrails and self-closing entry gate for safer access.

Ideal Applications

  • MEP installation and maintenance (HVAC, electrical, fire systems).
  • Fit-out and finishing works (ceilings, lighting, signage).
  • Facility management in malls, airports, and warehouses.
  • General industrial maintenance where clean, quiet operation is required.

Rental & Support

Available for short- and long-term hire from Rakaz Al Joudah General Contracting (RJGC). We provide prompt delivery, operator familiarization, and responsive service support to keep your project on schedule.

Technical specifications

Manufacturer

LGMG

Model

S1413EⅡ (S4650EⅡ)

Country of Origin

China

Platform Capacity

320 kg

Working Height

Indoor / Outdoor: 15.8 / 10 m

Platform Height

Indoor / Outdoor: 13.8 / 8 m

Capacity on Extension

120 kg

Overall Length

2.81 m

Overall Width

1.30 m

Platform Length

2.64 m

Platform Length (Extended)

3.54 m

Platform Width

1.12 m

Wheelbase

2.74 m

Operating Weight

3430 kg

Overall Height (Rails Up)

2.22 m

Overall Height (Rails Down)

1.94 m

Ground Clearance (stowed / raised)

105 / 20 mm

Drive Height

Full Height

Turning Radius

2.95 m

Tire Type

Solid non-marking

Tire Size

380 × 130 mm

Gradeability

25 %

Power Source

"24 V DC (4×6 V)

Hydraulic Oil Capacity

24.5 L

Standard Features

Proportional controls; foldable guardrail; emergency descent; emergency stop; tubing explosion-proof system; intelligent diagnostic system; flashing beacons; automatic braking; over-tilt protection; charging protection; safety arm for troubleshooting; hor

Platform Extension

0.90 m

Max Occupants (indoor / outdoor)

2 / 1 persons

Raise Time

80 s

Lower Time

62 s

Drive Mode

4×2

Brakes

Automatic braking

Ratings

0.00 ( 0 )

Comments 0

No comments yet.

Pricing information

Daily Rental Rate

SAR 329.81 per day

Weekly Rental Rate

SAR 1,414.55 per week

Monthly Rental Rate

SAR 4,900.00 per month
Availability: In stock (1)
Delivery time: 3–9 days
