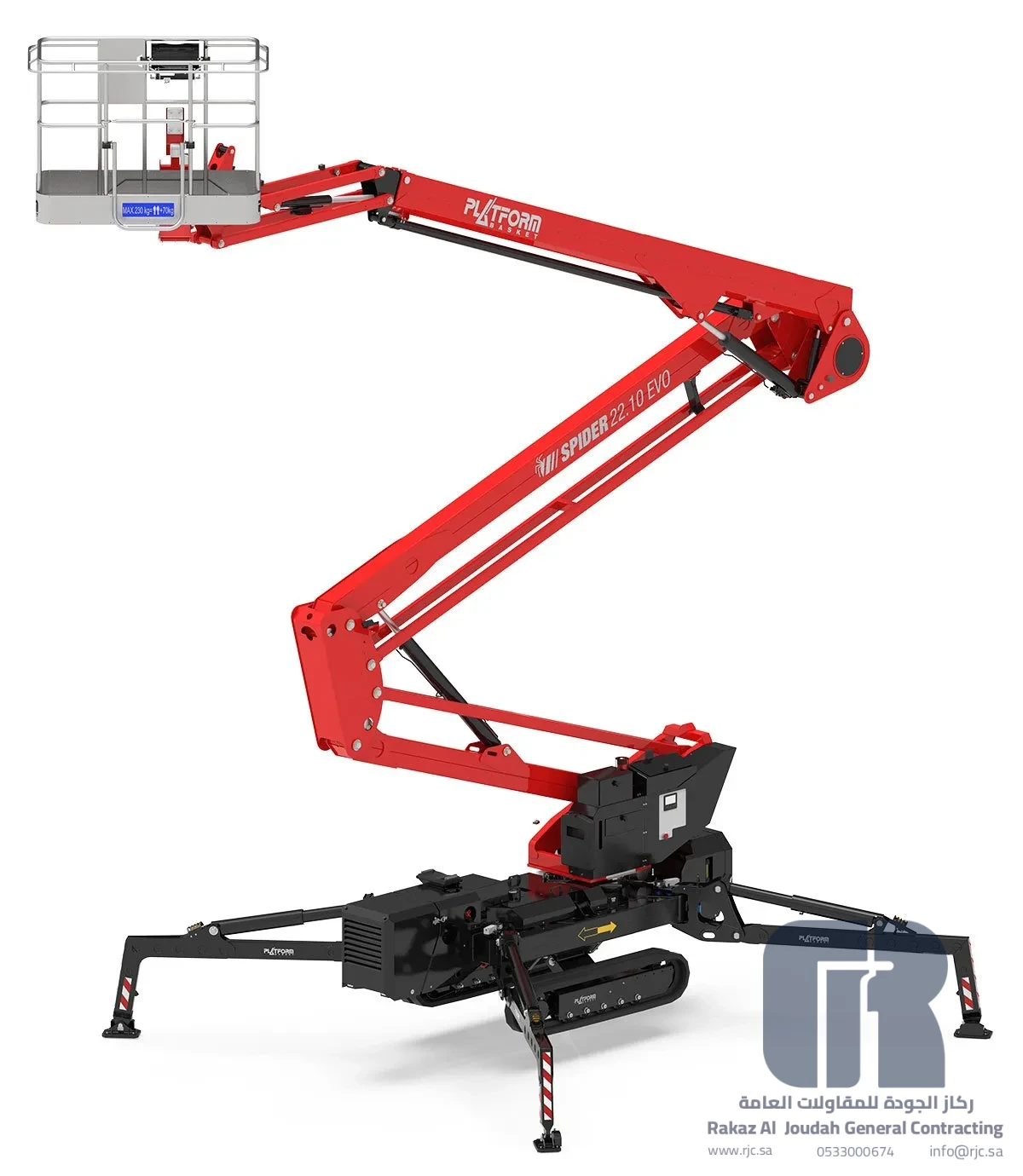

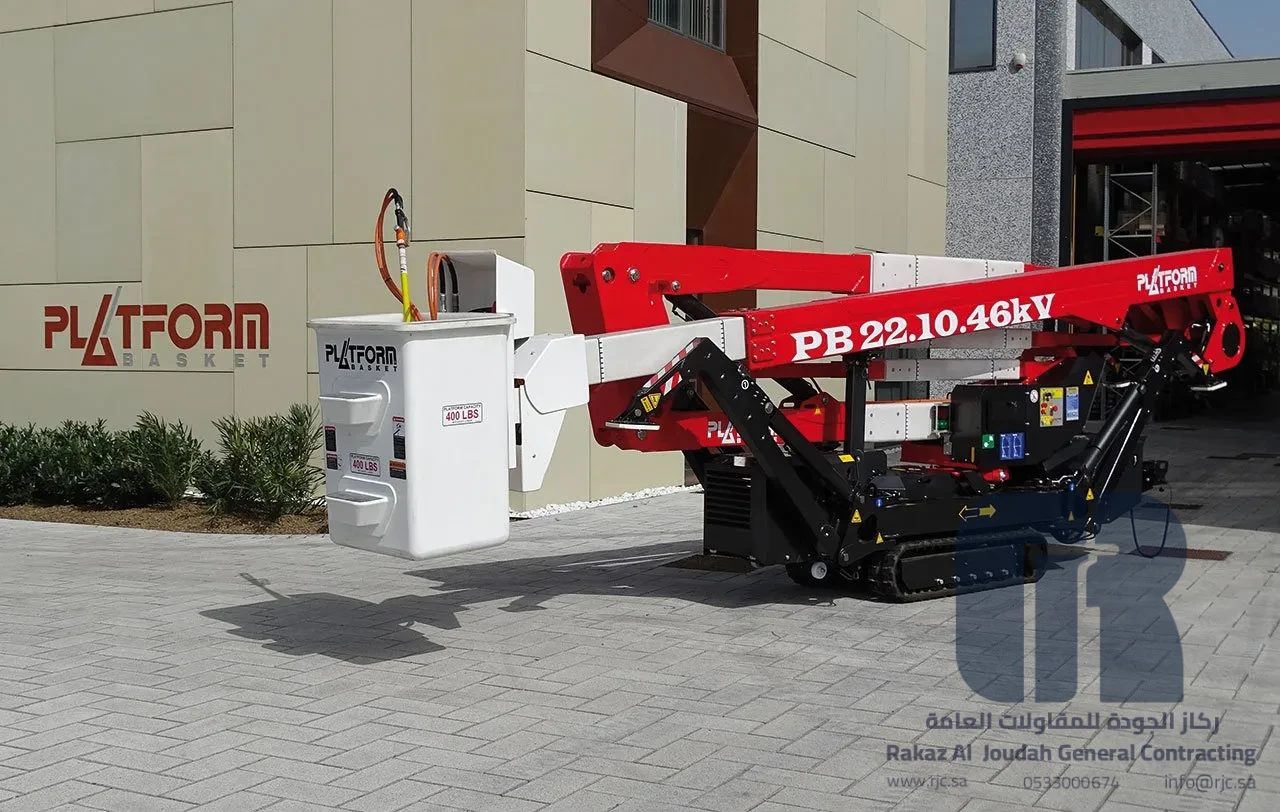

Platform Basket Spider 22.10 (ED) — Tracked Spider Lift for Rental
The Platform Basket Spider 22.10 (ED) is a compact tracked spider lift designed for safe access at height in tight or restricted work areas. With a maximum working height of 21.70 m, platform height of 19.70 m, and maximum outreach of 10.30 m, it is ideal for maintenance, façade works, MEP installations, and indoor/outdoor applications where access width and ground conditions are critical.
Key Performance
- Working height: 21.70 m
- Platform height: 19.70 m
- Max outreach: 10.30 m
- Basket capacity: 230 kg
- Turret rotation: 365°
- Basket rotation: 90° + 90°
- Basket size (aluminium): 1.50 x 0.70 m
Hybrid ED Powertrain
Your unit is the ED version, combining a diesel engine for reliable site power with a 24V DC electric traction system for controlled maneuvering.
- Diesel engine: Kubota Z602, 14 HP @ 3600 rpm
- Electric traction motor: 24 Vdc, 7.4 CV / 5.5 kW
- Travel speed (ED): up to 1.5 km/h
Compact Transport & Access
- Minimum closed width: 0.98 m
- Minimum closed height: 2.06 m
- Closed length: 5.97 m (5.28 m with basket disassembled)
- Operating weight (ED): 3260 kg
Stabilization for Confined Sites
Multiple stabilizer configurations allow safe setup even in narrow areas while maintaining performance.
- Wide footprint: 3.87 x 3.94 m
- Narrow footprint: 2.57 x 5.05 m
- Max horizontal inclination: 16° (29%)
- Max side inclination: 17° (31%)
Operational Advantages
- Radio remote control for positioning and setup
- Triple stabilization with automatic outreach control
- Multi-width stabilizer settings for restricted spaces
- Air / water / 220 Vac outlets available in the basket (as per configuration)
- Optional interchangeable cage with winch capability (optional)
Contact us to confirm availability, delivery to site, and rental terms for your project.
